Selecting the appropriate enclosure for a switchboard is a critical decision that can significantly impact the performance, safety, and longevity of your electrical system. As a seasoned switchboard supplier, I've witnessed firsthand the challenges and complexities that come with this choice. In this blog post, I'll share some key considerations and guidelines to help you make an informed decision when choosing the right enclosure for your switchboard.
Understanding Your Requirements
The first step in choosing the right enclosure is to understand your specific requirements. This involves assessing factors such as the size and capacity of your switchboard, the environment in which it will be installed, and any regulatory or safety standards that must be met.
- Size and Capacity: The size and capacity of your switchboard will determine the size and type of enclosure you need. Consider the number of circuits, breakers, and other components that will be housed in the switchboard, as well as any future expansion plans. Make sure to choose an enclosure that provides enough space for easy installation, maintenance, and access to the components.
- Environment: The environment in which the switchboard will be installed is another important factor to consider. If the switchboard will be located in a harsh or corrosive environment, such as an industrial facility or outdoor location, you'll need to choose an enclosure that is designed to withstand these conditions. Look for enclosures made from materials such as stainless steel, fiberglass, or powder-coated steel, which offer excellent corrosion resistance.
- Regulatory and Safety Standards: Depending on your location and the type of application, there may be specific regulatory and safety standards that you need to comply with. For example, in some areas, switchboards must be installed in enclosures that meet certain fire resistance or ingress protection (IP) ratings. Make sure to research and understand these requirements before making your selection.
Types of Enclosures
There are several types of enclosures available for switchboards, each with its own advantages and disadvantages. Here are some of the most common types:

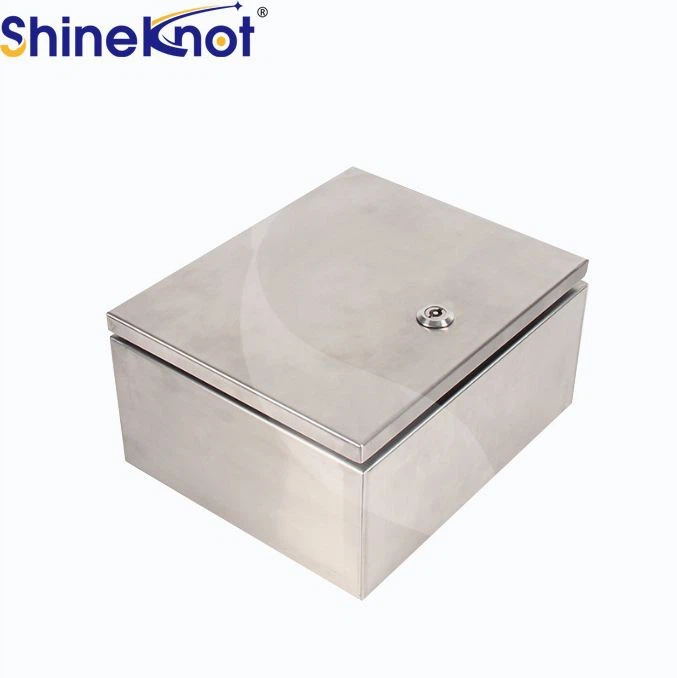

- Surface Mounted Enclosures: Surface mounted enclosures are designed to be mounted directly on a wall or other flat surface. They are a popular choice for indoor applications where space is limited. Surface mounted enclosures are typically available in a variety of sizes and materials, and can be customized to meet your specific requirements. You can explore our Surface Mounted Electric Meter Box and Surface Mounted Switchboard options for more details.
- Flush Mounted Enclosures: Flush mounted enclosures are installed flush with the wall or other surface, providing a more aesthetically pleasing appearance. They are commonly used in commercial and residential applications where a clean and professional look is desired. Flush mounted enclosures require more installation time and effort than surface mounted enclosures, but they offer a more seamless integration with the surrounding environment.
- Free-Standing Enclosures: Free-standing enclosures are designed to stand on the floor and are typically used for larger switchboards or applications where mobility is required. They are available in a variety of sizes and configurations, and can be equipped with wheels or casters for easy movement. Free-standing enclosures provide easy access to the switchboard components and are suitable for both indoor and outdoor use.
- Modular Enclosures: Modular enclosures are made up of pre-fabricated modules that can be easily assembled and customized to meet your specific requirements. They offer a high degree of flexibility and can be expanded or modified as needed. Modular enclosures are a popular choice for large-scale projects or applications where future expansion is anticipated.
Material Selection
The material used to construct the enclosure is an important consideration, as it can affect the durability, corrosion resistance, and overall performance of the switchboard. Here are some common materials used for switchboard enclosures:
- Steel: Steel is a popular choice for switchboard enclosures due to its strength, durability, and affordability. It is available in a variety of grades and finishes, including galvanized, powder-coated, and stainless steel. Galvanized steel offers excellent corrosion resistance, while powder-coated steel provides a more aesthetically pleasing appearance. Stainless steel is the most corrosion-resistant option, but it is also the most expensive.
- Fiberglass: Fiberglass is a lightweight and corrosion-resistant material that is commonly used in outdoor or harsh environments. It is non-conductive, making it a safe choice for electrical applications. Fiberglass enclosures are available in a variety of colors and finishes, and can be easily customized to meet your specific requirements.
- Aluminum: Aluminum is a lightweight and corrosion-resistant material that is commonly used in applications where weight is a concern. It is also a good choice for applications where a high degree of thermal conductivity is required. Aluminum enclosures are available in a variety of grades and finishes, and can be easily fabricated and customized.
Additional Features and Considerations
In addition to the factors mentioned above, there are several other features and considerations that you may want to take into account when choosing an enclosure for your switchboard. Here are some examples:
- Ingress Protection (IP) Rating: The IP rating indicates the degree of protection provided by the enclosure against the ingress of dust and water. Make sure to choose an enclosure with an IP rating that is appropriate for the environment in which it will be installed. For example, if the switchboard will be located in an outdoor area, you'll need an enclosure with a high IP rating to protect it from rain, snow, and dust.
- Ventilation: Proper ventilation is essential to prevent overheating of the switchboard components. Look for enclosures that are designed with ventilation openings or fans to ensure adequate airflow. Some enclosures also come with built-in cooling systems, such as air conditioners or heat exchangers, to maintain a stable operating temperature.
- Locking Mechanism: A secure locking mechanism is important to prevent unauthorized access to the switchboard. Look for enclosures that are equipped with high-quality locks and hinges to ensure the safety and security of the components.
- Accessibility: Make sure to choose an enclosure that provides easy access to the switchboard components for installation, maintenance, and troubleshooting. Look for enclosures with removable panels, hinged doors, or other features that allow for easy access to the interior of the enclosure.
Conclusion
Choosing the right enclosure for a switchboard is a critical decision that requires careful consideration of several factors. By understanding your specific requirements, researching the different types of enclosures available, and considering the material selection and additional features, you can make an informed decision that will ensure the performance, safety, and longevity of your electrical system.
If you have any questions or need further assistance in choosing the right enclosure for your switchboard, please don't hesitate to contact us. Our team of experts is here to help you find the best solution for your needs. We offer a wide range of high-quality switchboards and enclosures, and we can customize them to meet your specific requirements. Whether you're a small business owner or a large-scale industrial contractor, we have the expertise and experience to provide you with the products and services you need. Contact us today to start the procurement process and let's work together to find the perfect switchboard enclosure for your project.
References
- Electrical Installation Handbook, Schneider Electric
- National Electrical Code (NEC), National Fire Protection Association (NFPA)
- International Electrotechnical Commission (IEC) Standards
