Description

Introduction

Has the height from the shape of good non-release paper EPR

High-voltage insulating tapes with excellent heat dissipation for high temperatures in intermediate joints.

Excellent physical and electrical properties for quick moisture sealing and void-free assembly

Physical and electrical properties that are not affected by the degree of stretching

Suitable for continuous operating temperatures of 90°C and short-term overloads of 130°C

Can be used in both low and high voltage applications

Wide range of applicable temperatures and good stability

Specification

Mechanical Property	Typical values	Test Methods
Color	Black
Thickness	30mil(0.76mm)	ASTMD -4325
Tensile Strength	250PSI(1.72Mpa)	ASTM D -4325
Elongation at break	1000%	ASTM D -4325
Working Temperature	90´ C (194° F )	ASTM D -4388
Emergency overload temperature	130´ C (266° F )	ASTM D -4388
Thermal conductivity	0.3W/ m ´ C (23´ C )	ASTM C -518
Ozone resistance	Pass	ASTM D -4388

Electrical Performance	Typical values	Test Methods
Dielectric Strength	Original value
	750V/mil(29.5KV/mm )	ASTM D -4325
	After 24hrs in water
	750V/mil(29.5KV/mm )	ASTM D -4325
	96hrs at 23ºC,96%RH
	730V/mil(28.7KV/mm )	ASTM D -4325
Dielectric Constant	3.5(23´C )
	3.6(90´C )	ASTM D -4325
	( Both typical values above at 1200volts@60HZ)
Dissipation Factor	0.70%(23´C )	ASTM D -4325
	3.00%(90´C)
	( Both typical values above at 1200volts@60HZ)

Product application

3M ScotchTM 130C is a very conformable, paperless EPR tape-based insulating tape. It can be applied at a continuous working temperature of 90°C and an emergency temperature of 130°C, helping to dissipate heat at the joints. It has excellent physical and electrical properties and quickly fills voids to act as a dust seal. It can be used for low voltage insulation as well as up to 69KV.

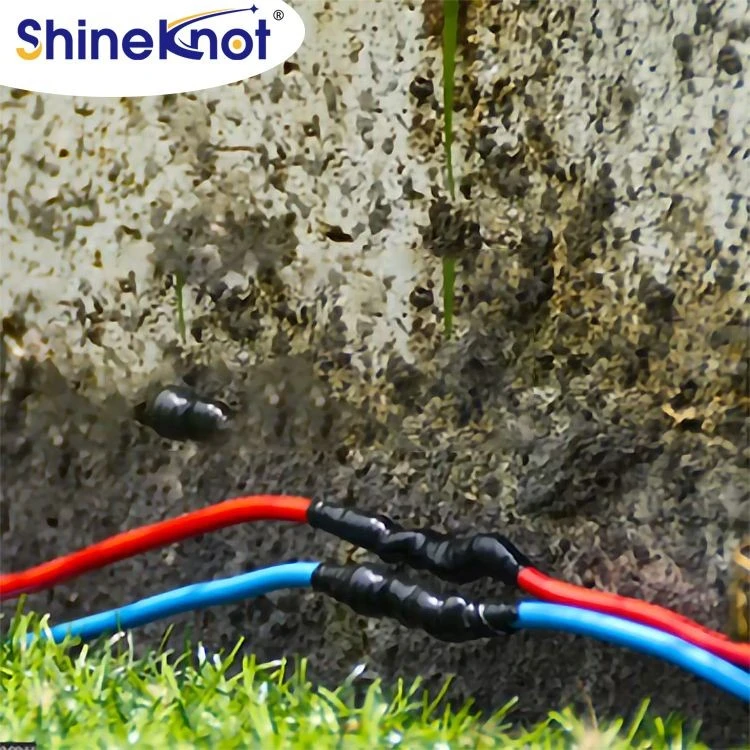

3M ScotchTM 130C is a very conformable, Widely used for sheath protection of intermediate joints and terminations, main insulation restoration of 69,000 volt solid dielectric cables, moisture sealing of electrical connections and busbar insulation.

Production details

No release paper design, convenient and fast use

Good heat dissipation to form a stable and durable joint

Self-melting material to achieve moisture-proof sealing effect

Stable and durable performance: tape toughness is excellent, good heat dissipation moisture-proof sealing effect is good.
