Description

Introduction

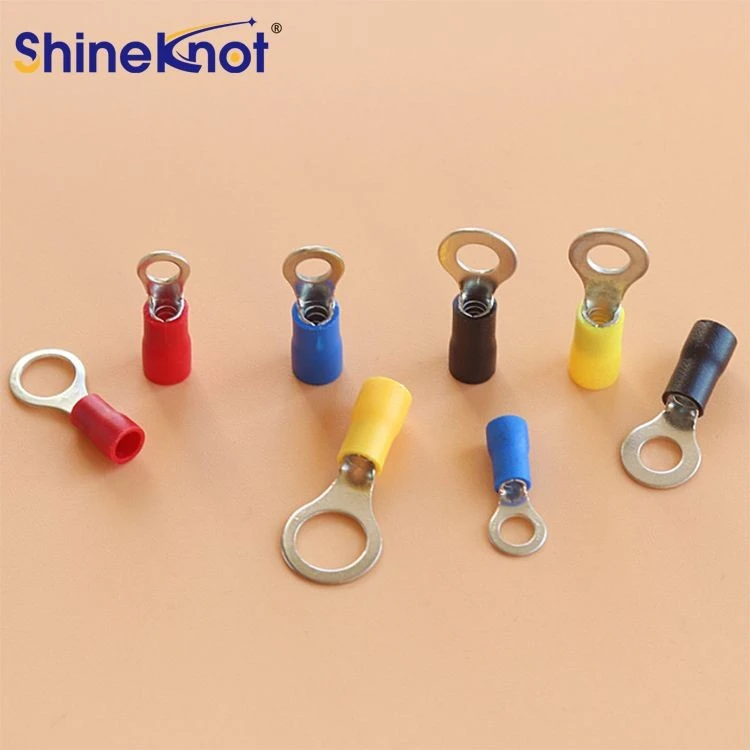

Insulated Ring Terminal

Made of brass

Not easy to oxidize

High load capacity

Low resistance value

Excellent conductivity

Specification

product-189-141

Model number	U.S.Bolt No.	Bolt Hole Diameter d2φ(MM)	Size						Traverse section
Model number	U.S.Bolt No.	Bolt Hole Diameter d2φ(MM)	B	L	F	H	D	Color	Traverse section
RV1.25-3.2	#4	3.2	5.7	17.8	4.95	10	4.3	Red Blue Yellow Black	0.5-1.5
RV1.25.45	#8	4.3	6.6	20.1	6.3
RV1.25-4L	#8	4.3	8.0	21.5	7.0
RV1.25-5	#10	5.3	8.0	21.5	7.0
RV1.25-6	1/4	6.4	11.6	23	11.1
RV1.258	5/16	8.4	11.6	27.5	11.1
RV1.25·10	3/8	10.5	13.6	31.6	13.9
RV2-3.2	#4	3.2	6.6	17.8	4.3	10	4.9	Red Blue Yellow Black	1.5-2.5
RV2-3.7S	#6	3.7	6.6	21	4.3
RV2-4S	#8	4.3	6.6	21	7.0
RV2-4L	#8	4.3	8.5	22.5	7.75
RV2-5	#10	5.3	9.5	22.5	7.75
RV2-5L	#10	5.3	9.5	22.5	7.25
RW2-6	1/4	6.4	12	27.6	11
RV2-8	5/16	8.4	12	27.6	11
RV3.5-4	#8	4.3	8.0	24.5	7.7	13	6.2	four colors	2.5-4
RV3.5-55	#10	5.3	8.0	24.5	7.7
RV3.5-5L	#10	5.3	12	27.9	7.7
RV3.5-6	1/4	6.4	12	27.9	7.7
RW5.5-3.7	F6	3.7	7.2	21.4	5.9	13	6.7	Red Blue Yellow Black	4-6
RW5.5-4S	#8	4.3	7.2	21.4	5.9
RV5.5-4L	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5,5-6	1/4	6.4	12	31.5	13
RV5,5-8	5/16	8.4	15	33.7	13.7
RV5.5-10	3/8	10.5	15	33.7	13.7

Product name	RV round insulated terminal
Product material	Brass + tinned surface
Plastic material	PVC
Product Color	Red, Blue, Yellow, Green, Black

Product application

Factory equipment

equipment factory

Furniture appliances

Distribution box

Insulated Ring Terminal,Inside into a full copper conductive, tin-plated surface to form a protective film, low resistance, conductive strong. And the shell is made of PVC, made of new high insulating material, good protection performance. Especially the terminal in the stamping type press stamping molding resistance to pulling ability, not off, can be quickly docking, connecting solid, convenient and fast, improve work efficiency.

Insulated Ring Terminal widely used in home appliances, factory equipment,

Production details

Tinned brass, insulated and flame retardant. Good conductivity, complete specifications, easy to install.

PVC sheath: insulation material. Plastic jacket made of PVC material, with flame retardant insulation, sheath grade high use performance.

Beautiful and convenient: strong toughness, Small size, not easily deformed.

Product qualification

All the products will go through lots of tests carefully before dispatch: Raw material check, Assemble test, Painting check and routine tests.

Product certification

Our advantages

We have up to 500 supply chains and 5,000 products. We can provide both standardized products and customized products with flexible MOQ and timely delivery.

Our one-stop service saves you much time and money. Attentive service and quick response are our values.

The services we provide:

1,Good quality control

2,Highly competitive prices

3,The most advanced technological products

4,Professional production and sales team

5,Smooth communication

product-1046-484

FAQ

Q: How long is your delivery time?

A: If we have stock, we can ship the goods immediately. If the products need to be manufactured. The general delivery time is 15-45 days.

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we have to charge.

Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.

Q: Which payment can you accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product. For all the goods, our team will check at least twice before delivery. For some items, we can provide photos and videos.
